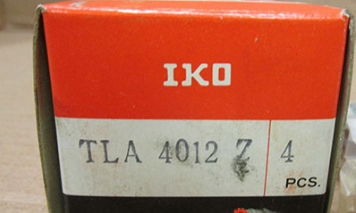

IKO Number: TLA 4012Z

Mass (Ref.): 30 g

Assembled inner ring:

Fw: 40 mm

D: 47 mm

C: 12 mm

Shaft dia. h6max.: 40 mm

Shaft dia. h6min.: 39.984 mm

Housing bore dia. N7max.: 46.992 mm

Housing bore dia. N7min.: 46.967 mm

Dynamic, C: 12.4 kN

Static, C0: 22.8 kN

Allowable rotational speed: 8500 rpm
